Mastering compressor

  • Blend control for parallel compression.
  • All controls stepped for easy recall.
  • High Pass filter on the sidechain with 5 frequencies.
  • Low ratios for mastering.
  • THD circuit that adds more even harmonics.
  • Smooth compression.

TK Audio’s BC2-ME is a perfect tool for mastering. It is based on the same basic sound path as the BC1, added with some nice features like illuminated switches and switchable output-stage between electronically-balanced or transformer balanced class-A. The class-A mode offers a more vintage tone, like fat, punchy low-end response with more low mid character. BC2-ME also has a switch that adds extra “even” harmonics to the compressed signal.

Noise floor: below 104dBm
Frequency response: 20Hz to 20kHz, less than -0.3dB
THD+N: less than 0.006% @ +8dBm
Max output level: +27dBu @ 600ohms load
Features:Threshold: -20dB to +20dB
Ratio: 1.25:1 / 1.5:1 / 2:1 / 4:1 / 10:1
Attack: UF (ultrafast) /0.1/0.3/0.6/1/3/10/30/60/120mS
Release: 50mS/100mS/300mS/600mS/1.2S/Auto
HP Filter: 75Hz, 100Hz, 125Hz, 150Hz, 250Hz, -6dB octave
Compression: in/out
External sidechain: in/out
Dual or single sidechain detectors (L+R)
THD: adds extra even harmonics
Class-A: selects the transformer balanced class-A output stage
Straight signal mute
LED gain reduction meter in 0.5dB steps
Make-up: 0 to +10dB in 41 steps
Blend control: from straight to dry in 21 steps
Balanced input: 40kohm impedance
Balanced output: 100ohm impedance

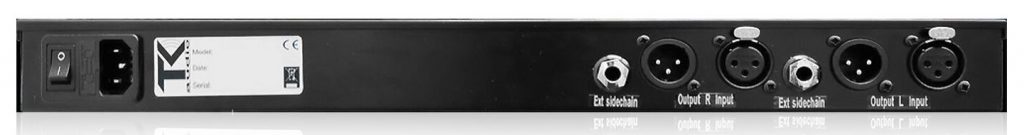

External sidechain input: balanced TRS jacks
Regulated, internal power supply with a toroidal transformer
Selectable between 115 and 230V

Specifications and components may be changed or updated without further notice.
